EWS.Varia VXT is the latest addition to our successful Varia series. Specially developed for static turning applications, this system combines maximum precision, stability and flexibility. Based on the proven EWS.Varia VX system, the new VXT line enables extremely compact tool clamping. Every millimetre of the clamping length counts, especially when machining in the direction of the turret box.

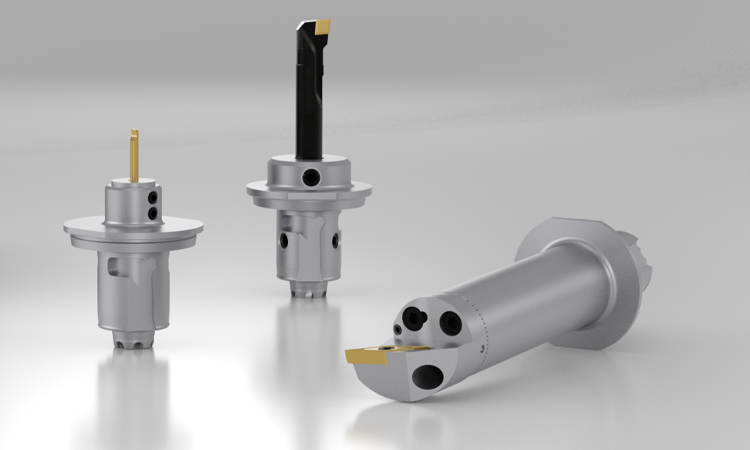

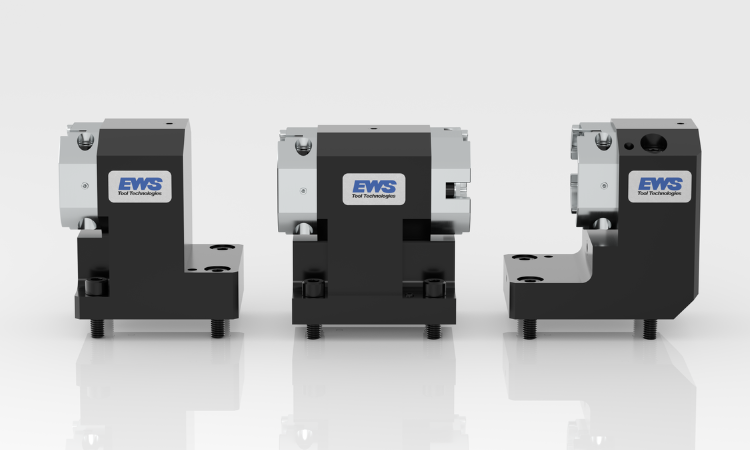

EWS.Varia VXT - The quick-change system for static turning applications
Your key to masterful internal turning
Optimized stability and cushioning
- The double-cone flex system offers maximum rigidity thanks to widely spaced support points.
- The elastic second cone in the rear part of the adapter and additional clamping screws improve damping, resulting in a longer service life and higher surface quality.
- The dual surface fit ensures reliable torque transmission and precise position orientation.
Tool change, flexibility and modularity

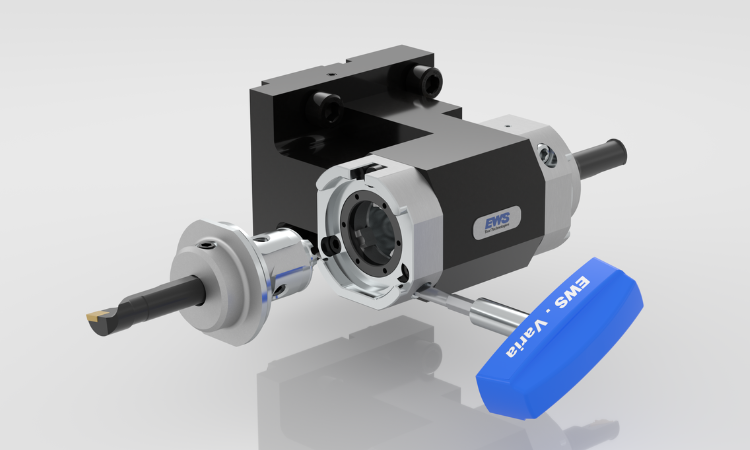

- Single-handed operation: Allows tools to be changed safely and quickly directly in the machine
- EWS.Varia VXT also combines the most frequently changed machining operations and enables the use of standard and overhead tools
Highest precision and performance
- Repeat accuracy: +/- 0.002 mm
- Transmittable torque: VXT3 = 160 Nm | VXT4 = 200 Nm
- Coolant pressure: Maximum 80 bar
Optimized stability and cushioning Comparison
Between EWS.PSC 40 and EWS.Varia VXT3

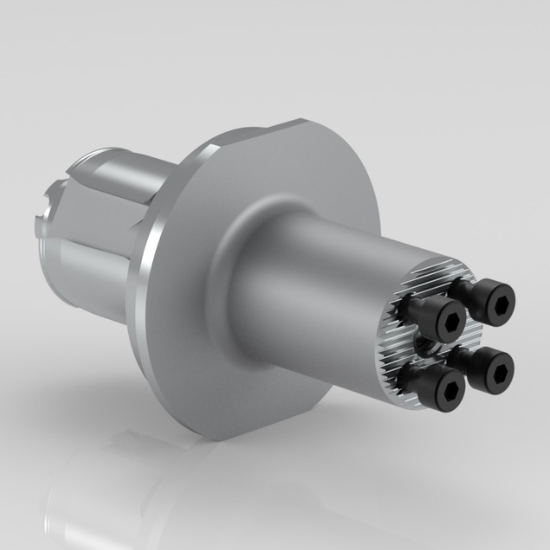

Varia VXT interchangeable insert
For our loyal customers and users of the EWS.Varia VX system, we offer a special EWS.Varia VXT interchangeable insert, which enables a cost-efficient conversion of existing tool holders to the EWS.Varia VXT system and offers a seamless introduction to the newly developed technology.
Advantages
Maximum cost efficiency and uncomplicated changeover: Effortlessly convert your existing VX tool holders to the VXT system and save time and money in the process.
